GRE Piping System

◆ GRE PIPING SYSTEM（Glass-fiber Reinforced Epoxy piping system）
GRE Pipe layout and Engineering – FPI GRE Pipe sales and installation agent in Japan

Applications:
EGCS/SOx scrubber drainage and water supply pipes, DBTM ballast water transfer pipes, offshore wind turbine drainage pipes, TLP ballast water transfer pipes, fire extinguishing piping, bilge piping, cooling water and Fresh water piping, inert gas piping, drinking water, deck cleaning piping, etc.

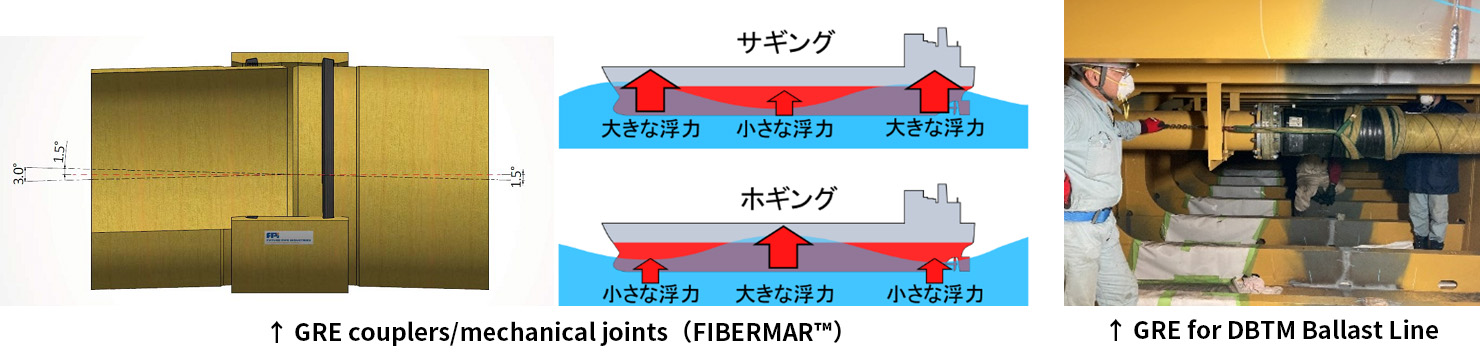

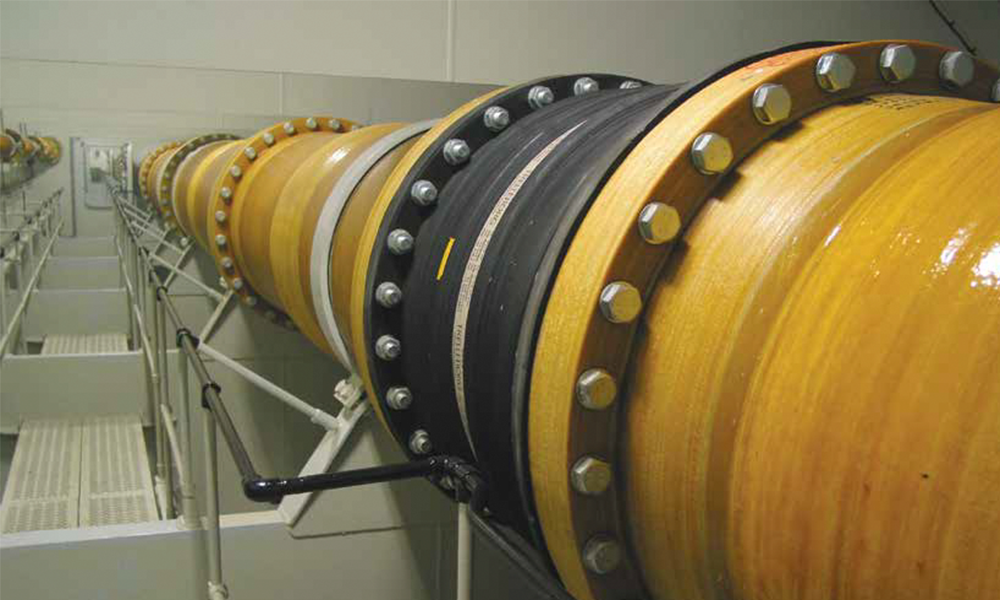

◆ GRE for DBTM Ballast Line piping system（FIBERMAR™）
The overall piping system design, combined with the adoption of GRE couplers/mechanical joints (Rubber Seal Joints: ClassNK type approval TA21349M), allows the couplers to move axially by ±50 mm and accommodate deflection angles up to 1.5 degrees. This provides tolerance (allowable range) for the installation of adjacent pipe materials and offers sufficient flexibility to the pipe system, allowing it to follow the vertical deformation (sagging and hogging) of the hull that occurs during navigation.

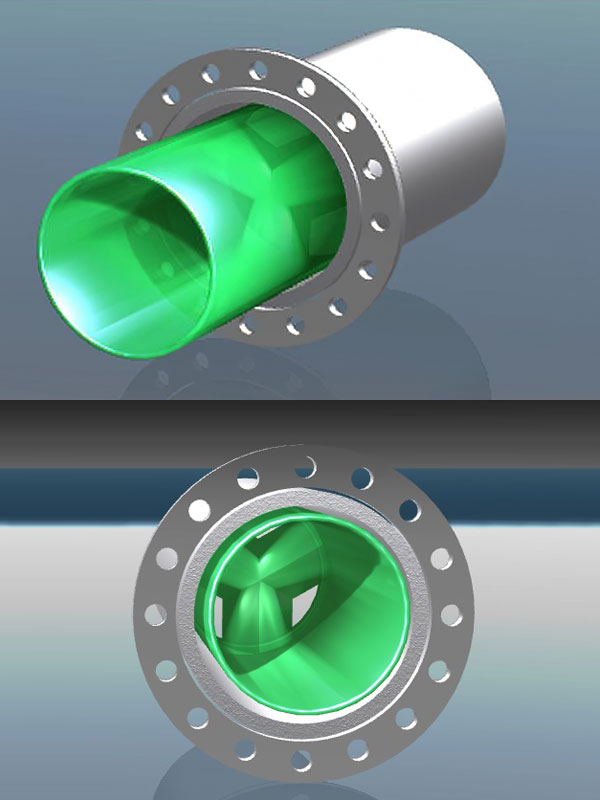

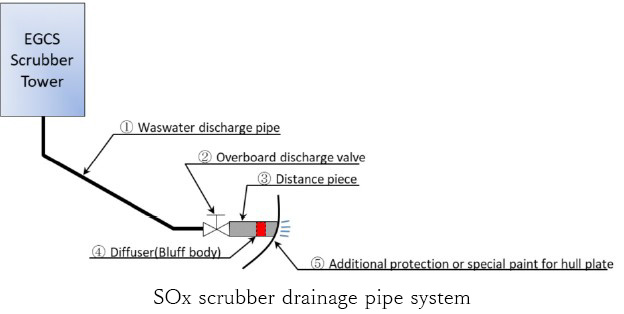

◆GRE SLEEVE solution（for EGCS drainage Distance Piece）＋Grout application, corrosion prevention

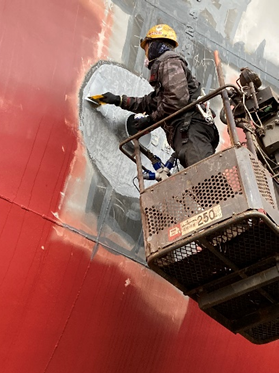

Grout application to hull plating
